Bambu Lab - Donor Spool Frame 2 - Modular Design - For Spools from 0.5kg to 3kg

BEFORE STARTING THE IMPLEMENTATION OF THE PROJECT, READ CAREFULLY THE ENTIRE DESCRIPTION AND VIEW THE PHOTO GALLERY !!!

This is a Remix “Donor Spool Frame 2 - Modular Design”  for an amazing project  "Filament Spool Switcher & Winder" Design by @MiklosKiszely_486882

TO FULLY COMPLETE THE PROJECT, DOWNLOAD THE REMAINING ITEMS FROM THE LINK BELOW
https://www.printables.com/pl/@Damian27/collections/1304611

Hello Everyone

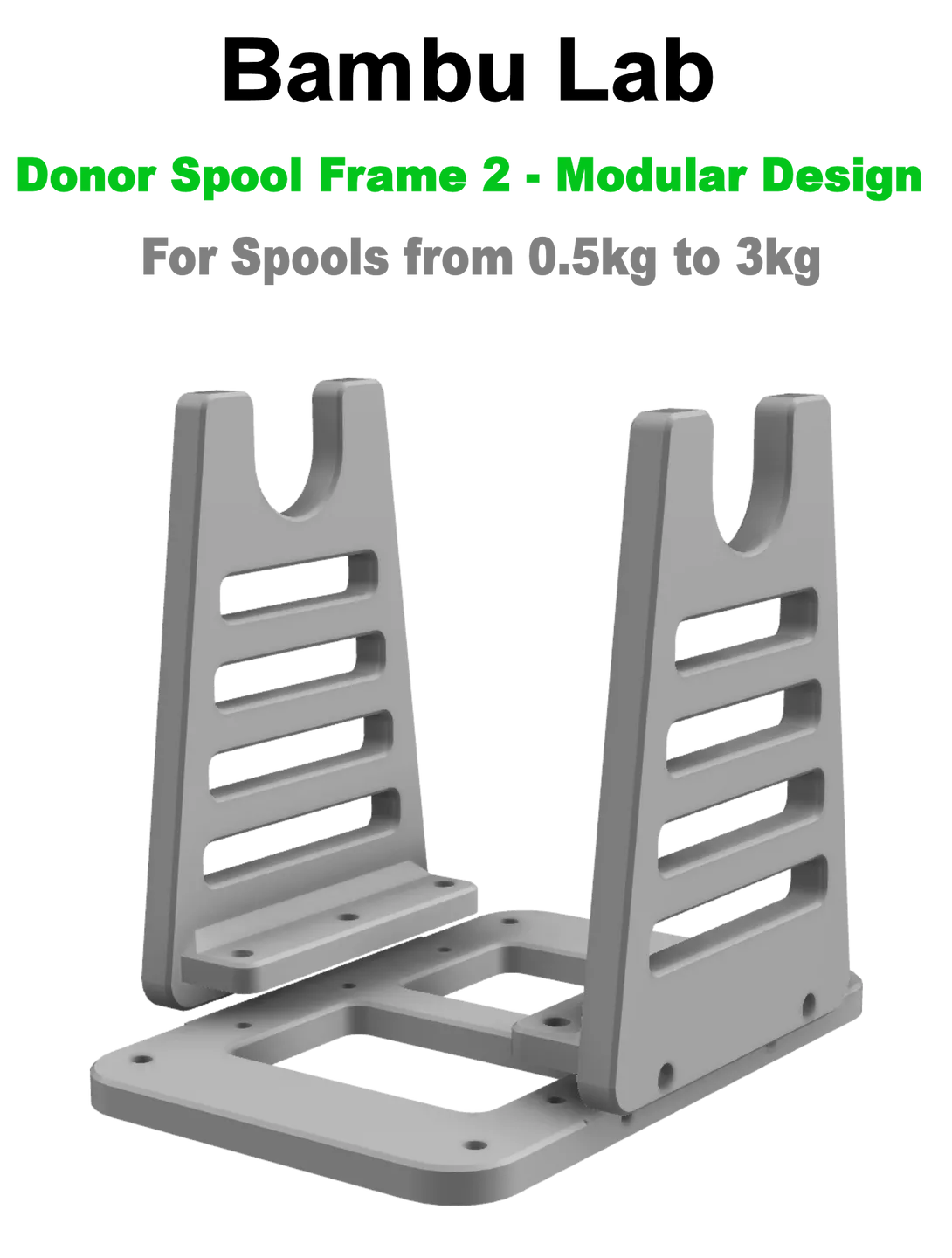

In connection with the publication of the "Winder Spool Frame 2 - Modular Design" project, I also publish the "Donor Spool Frame 2 - Modular Design" project to make the project consistent with each other. I share as many as 3 versions for a spool weighing 1kg, 2.5kg and 3kg. The version for a 1kg spool has an arm spacing of 110mm and a spool with a diameter of up to 210mm can be used. The version for a 2.5 kg spool has an arm spacing of 140 mm and can be used with spools with a diameter of up to 310 mm. The version for a 3kg spool has an arm spacing of 170mm and can be used with spools with a diameter of up to 310mm. The new version "Donor Spool Frame 2 - Modular Design" uses only 25 g more fiber than the original version. Maintaining the following printing parameters, the entire project requires 165g of filament.

When you complete the project, please share a photo and a comment. Thank you and have a nice day.


UPDATE 18.02.2024 :

• For the basic version, I added a frame with 3-screw assembly
• I added bases in 3 lengths: 160mm, 170mm and 180mm. Not everyone will use this spool stand for their "Filament Spool Switcher & Winder" project. Therefore, you can choose the length of the base to suit your needs - Only the 180mm long base is compatible with the “Spool Brake for Bambu Lab Filament Spool Switcher & Winder”

UPDATE 27.02.2024 :

• At the user's request, I added arms for 3kg spools. The arms have a spacing of 170mm. I added two versions for the Stand project and for the regular version.


What Should I Buy ? :

If you will also be printing "Winder Spool Frame 2 - Modular Design" after the March premiere, buy both items in 40-50 pieces

For the version with 1kg spools :

• Screws M3 8mm - Cylindrical Head - 6-10pcs - https://a.aliexpress.com/_EQBSTPJ

• Heat Threaded Insert M3 3-4mm OD 4.5mm - 6-10pcs - https://a.aliexpress.com/_EyZii5B


For the version with 2.5 - 3kg spools

• Screws M3 8mm - Cylindrical Head - 6pcs - https://a.aliexpress.com/_EQBSTPJ

• Screws M3 25mm - Cylindrical Head - 4pcs - https://a.aliexpress.com/_EQBSTPJ

• Heat Threaded Insert M3 3-4mm OD 4.5mm - 10pcs - https://a.aliexpress.com/_EyZii5B


 Should I Print? :

• Choose the Right Base :
  Donor Spool Frame 2 - Modular Design - Base 160mm.stl - 1pc
  Donor Spool Frame 2 - Modular Design - Base 170mm.stl - 1pc
  Donor Spool Frame 2 - Modular Design - Base 180mm.stl - 1pc - Only the 180mm long base is compatible with the “Spool Brake for Bambu Lab Filament Spool Switcher & Winder” - Version with a 1 kg spool

• Choose The Right Arm :
  Donor Spool Frame 2 - Modular Design - Arm Spacing 110mm - 3 Screws.stl - 2pcs
  Donor Spool Frame 2 - Modular Design - Arm Spacing 110mm - 5 Screws.stl - 2pcs
  Donor Spool Frame 2 - Modular Design - Arm Spacing 140mm - For Spool 2.5kg.stl - 2pcs
  Donor Spool Frame 2 - Modular Design - Arm Spacing 140mm - For Stand and Spool 2.5kg.stl - 2pcs
  Donor Spool Frame 2 - Modular Design - Arm Spacing 170mm - For Spool 3kg.stl - 2pcs
  Donor Spool Frame 2 - Modular Design - Arm Spacing 170mm - For Stand and Spool 3kg.stl - 2pcs

How To Print ? :

• Material : Each Rigid Filament - I printed with PLA Premium (I do not recommend PETG - It is too flexible)
• Layer Height : 0.2mm
• Infill : 20%
• Wall Loops : 4
• Bottom Layers : 4
• Top Layers : 4
• Support : No
• Brim : No

I receive a lot of messages asking what to print for a complete project. It is complicated for many people. I had a problem with that myself. So I decided to prepare a short instruction.

If you take advantage of all my improvements :

All Projects :
https://www.printables.com/pl/@Damian27/collections/1304611

1. Bambu Lab - Winder Spool Frame 2 - Modular Design
https://www.printables.com/pl/model/769319-bambu-lab-winder-spool-frame-2-modular-design

2. Bambu Lab - Donor Spool Frame 2 - Modular Design
https://www.printables.com/pl/model/766774-bambu-lab-donor-spool-frame-2-modular-design-for-s

3. Bambu Lab - Upgraded All Gears and Axes
https://www.printables.com/pl/model/478967-bambu-lab-filament-spool-winder-upgraded-all-gears

4. Bambu Lab - Upgraded Filament Guide, Filament Guide Sled, Filament Guide Carriage and Knob
https://www.printables.com/pl/model/478923-bambu-lab-filament-spool-winder-upgraded-filament-

5. Bambu Lab - Winder Spool Holder with Bearings - Modular Design
https://www.printables.com/pl/model/740644-winder-spool-holder-with-bearings-for-bambu-lab-fi

6. Bambu Lab - Donor Spool Holder with Bearings - Modular Design
https://www.printables.com/pl/model/750033-donor-spool-holder-with-bearings-for-bambu-lab-fil

7. Universal Spool Centering Cone for Bambu Lab Filament Spool Switcher & Winder https://www.printables.com/pl/model/752030-universal-spool-centering-cone-for-bambu-lab-filam

8. Spool Brake for Bambu Lab Filament Spool Switcher & Winder
https://www.printables.com/pl/model/748642-spool-brake-for-bambu-lab-filament-spool-switcher-

9. Handle for Manual Rewind and Adapter for Electric Screwdriver
https://www.printables.com/pl/model/805532-handle-for-manual-rewind-and-hexagonal-adapter-for

10. Stand for Bambu Lab Filament Spool Switcher & Winder
https://www.printables.com/pl/model/479022-stand-for-bambu-lab-filament-spool-switcher-winder

11. Motor Drive 2 - Modular Design for Stand - Auto-Stop Function for Bambu Lab Filament Spool Switcher & Winder
https://www.printables.com/pl/model/485389-motor-drive-for-stand-auto-stop-function-for-bambu
