A500 GOTEK OLED Screen and Rotary Encoder Enclosure

Description

Gotek OLED screen and rotary encoder external enclosure designed to fit the Amiga A500 Computer.

Couldn't find an enclosure to fit the type of rotary encoder I bought, so designed this one myself in Fusion 360. Really pleased with how it turned out, especially the textured finish on top I got from using the Textured build plate, on my Original Prusa MK4 printer.

It's a simple enclosure, that you can just screw on the Rotary Encoder to fix it in place and the OLED screen is held in by the bracket, secured with 3 small 5mm M2 self tapping screws.

Also included in project files are the OLED screen and Rotary Encoder wiring diagrams.

For full details on how I got this working, check out my YouTube video below.

Print Settings

0.20mm SPEED, Generic PLA, Original Prusa MK4 0.4 nozzle, Supports: None, Infill 15%.

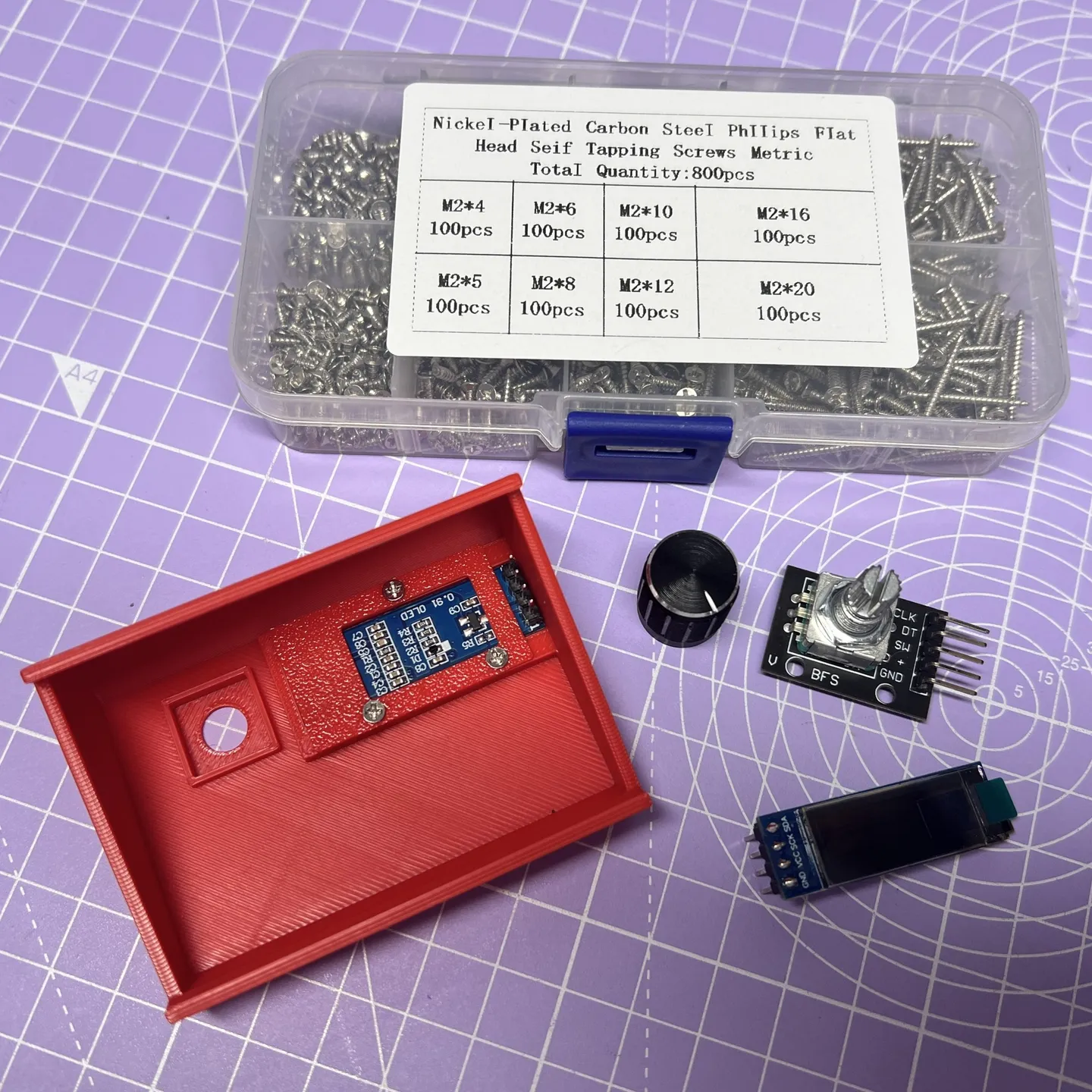

Parts Used For This Upgrade

eSun “Bone White” PLA+ 1.75mm Filament
(perfect match, colour-wise for the Amiga)
https://amzn.to/46kFgtB (aff)
Gotek USB Floppy Drive Emulator
https://www.aliexpress.com/item/32955231735.html
KY-040 360 Degrees Rotary Encoder Module with Knob Cap
https://www.aliexpress.com/item/1005006255706758.html
0.91 inch 128x32 OLED Display module
https://www.aliexpress.com/item/1005006160204449.html
800 pcs M2 Self Tapping Screw Set
https://amzn.to/4f4rmzX (aff)
450 pcs M3 Self Tapping Screw Set
https://amzn.to/3WbvW6H (aff)
