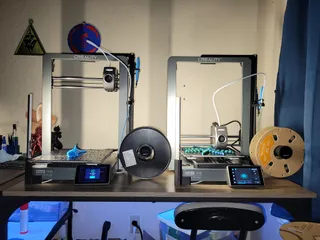

Ender 3 v3 2020 Upgrade (Core XZ)
Upgraded design to add a 2020 rail to the Ender 3 v3 XZ and spool holder.
17
51
0
1647
updated June 2, 2024
Description
PDFUpgrade the Ender 3 v3 XZ to utilize a 2020 side rail for modifications and upgrades.
Screws needed:
Bottom bracket - M3 10-12mm x2
2020 mounts uses M4 screws and T-Nuts
Spool holder uses a 4mm x 86mm steel rod
PTFE/Bowden M10 fitting needed.
Use 500mm 2020 Extrusion.
Remove Filament sensor and bracket and use Zip ties for the new Bracket.
