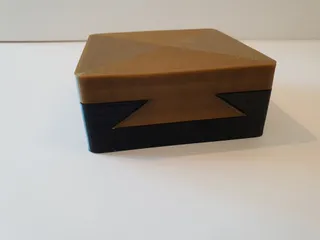

Deck Box für MtG Commander

Deck Box for MtG (Magic the Gathering) Commander.

Features:

• Lid slides on so that deck cant fall out if shaked
• lid is held with magnets (15mm x 1,7mm)
• front has a slot for a top loader
• sides have a slot to take out deck so you dont have to drop it out
• lid covers these slots

see print settings misc notes for printing instructions

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

2.8 for base, 2.0 for lid

Infill:

10%

Notes:

i use 2.8 layer height for the base and tree support in cura

for the lid you do not need support

i print the base standing upright and the lid flipped - so you have to rotate both models 90 degree

for the magnets i left a wall of 0.8 so you can have 2 walls if you print with a 0,4mm nozzle

i insert the magnets while printing without pause - i just calculate the z-height where the slot is still open for 2 more layers and i add an m300 command there

so my printer beeps and than i insert the magnet carefully
