Sovol SV07 cable holder for the print head

The cable holder should steer the supply cable for the print head a little to the right.
2
46
0
322
updated January 27, 2024

Description

PDF

Deutsch:

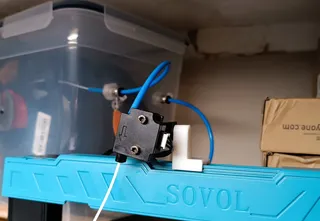

Leider musste ich feststellen, dass das Druckkopfkabel bei der Grundposition des Druckers gegen die z-Achse auf der linken Seite schlägt.
Mit der Zeit ist der Mantel des Kabels schon ein wenig weg gerieben.

Um einem Kurzschluss vorzubeugen, habe ich diesen Kabelhalter erstellt.

Es gibt eine 30 mm und 15 mm Version.
Ich habe mich am Ende für die 15 mm Version entschieden.

Zum Befestigen braucht man nur zwei 100 mm lange Kabelbinder.


English:

Unfortunately, I found that the print head cable on the printer on Homing is striking against the Z axis on the left.
Over time, the coat of the cable has grated a little.

To prevent a short circuit, I created this cable holder.

There is a 30 mm and 15 mm version.
In the end I chose the 15 mm version.

You only need two 100 mm long cable ties to fasten.
