Modular control panel for 3D printer

It is compatible with :

• Mk3s /mk2s panel control for Prusa3D
• PanelDue 5i from Duet3D
• Raspberry PI 3 1B+ / 2B / 3B+ / 4B
• Kuman 3.5″ (GPIO) / Hyperpixel 4″ (GPIO) / Waveshare 5″ (DSI)
• W1219 enclosure temperature control
• And more…

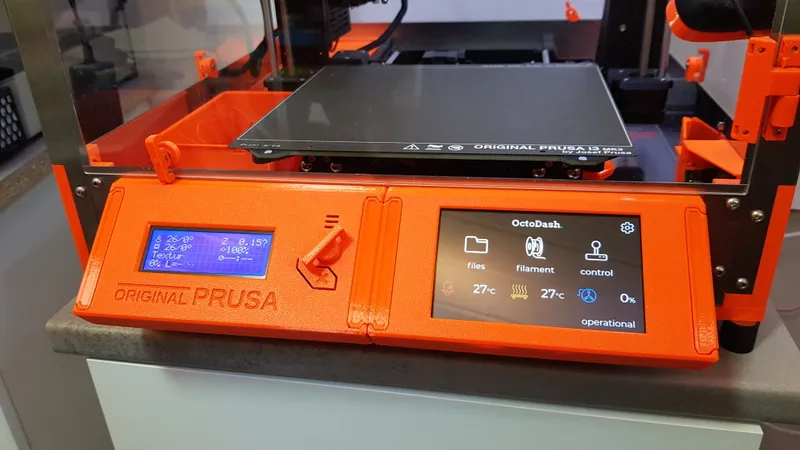

Prusa mk2/3s with Prusabox

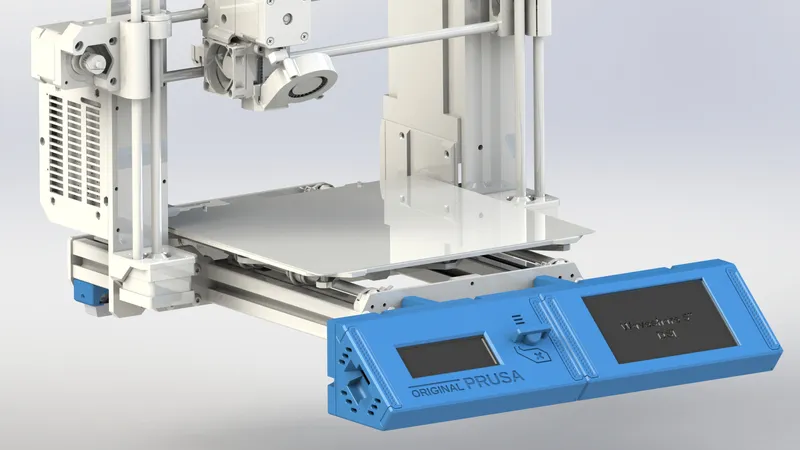

Prusa mk2/3s without Prusabox

It is a work in progress mod. Parts could be updated at any moments. Always check new version before print.

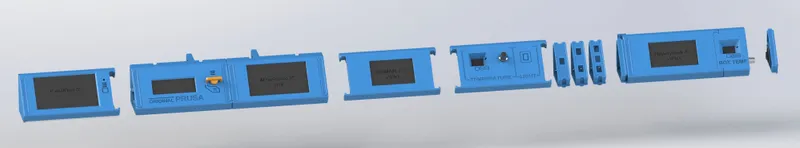

Part list:

Front parts:

• Mk3s /mk2s panel control for Prusa3D
• PanelDue 5i from Duet3D
• Kuman 3.5″ (GPIO)
• Hyperpixel 4″ (GPIO)
• Waveshare 5″ (DSI)
• W1219

Back parts:

• Basic left with cable slot
• Basic right with PI3/4 power cable slot
• Standalone left with cable slot
• Standalone right with PI3/4 cable slot
• Standalone bracket

Plate parts:

• Basic with 40x40mm fan slot
• Raspberry PI 3 1B+ / 2B / 3B+ / 4B with 40x40mm fan slot

Extremity left:

• Basic
• Mk3s/mk2s SD card opened

Extremity right:

• Basic with 30x30x10mm fan slot
• With w1219 control temperature slot and PWM setter slot

Coupler parts:

• Basic
• With #1 rocker switch (14×9.5mm) slot
• With #2 rocker switch (14×9.5mm) slot
• With #3 rocker switch (14×9.5mm) slot

Miscellaneous:

• Printer feet spacer for standalone use.

Assembling manual and more information:

https://www.printer-box.com/modular-control-panel-for-3d-printer/
