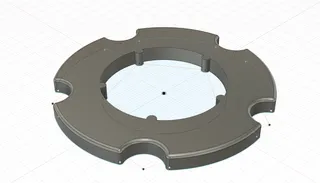

Sea-Doo Drain Spacer for transducer cable

This spacer allows cable entry into the hull via the existing drain hole.
5
46
0
352
updated November 15, 2023

Description

PDF

WARNING: USE AT OWN RISK. Using this spacer may compromise your hull and sink your ski. You have been warned.



Some notes:

  • Printed with PETG at 100% infill.
  • Designed with the Garmin GT56 transducer cable in mind.
  • If the hole for the cable is too small, you may need to clamp the spacer between two blocks of wood and run a 7mm drill through cable hole (7mm is approx. the diameter of the Garmin GT56 transducer cable).
  • The recess around the screw holes allow for a flush fit against the hull (as the hull bulges slightly around the screw holes)
  • There is a small channel to run a good bead of Sika 291 sealant.



Model origin

The author marked this model as their own original creation.
