TZB Ryper "Rv1" version MK3s+ for MMU2s or MMU2+1s

Hay que hacer bien fino el sensor de la compuerta porque es lo que mas guerra da

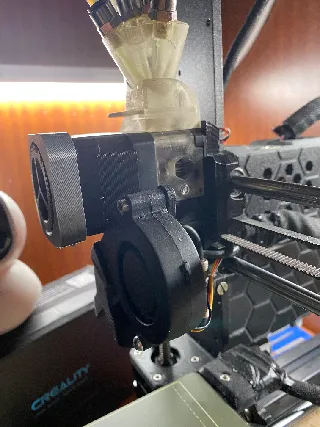

I had to print this extruder to change my mmu2 into Ryper3d. It works really well. Printed in ABS

Piezas necesarias para el extrusor si quieres usar un mmu2s ryper de 10 colores

Perfecto

El mejor extrusor para mmu sin duda!

buen diseño y lo q cuesta es ajustar bien el sensor de filamento pero cuando lo dejas ajustado funciona muy muy bien

Hi, can you add the lever step file too? Thank you in advance.

ok , work's fine.

Todo ok ,falta montarlo.

Oh yes, works fine.
I only had to lengthen the pin by about 1 mm so that the sensor would trigger. (edited)

Great design. Best improvement over tower design of original MMU2S extruder. Internal mechanism using much of the original MK3S+ design for filament detection, which is much more stable and reliable.

Bonus is that the extruder remains as compact as before. Another bonus is that you can still open the idler door with one screw to clear filament issues or do cold pulls.

Thanks for also sharing the STP files. Please also add the STP for the lever component. (edited)
