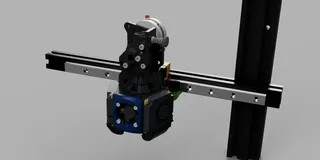

EVA 2.3 Toolhead for Ender 3 and Clones (Linear rail X)

Adapted from https://www.thingiverse.com/thing:4916779 (thanks!) with various changes
17
132
0
1216
updated September 28, 2023

Summary

PDF
Adapted from https://www.thingiverse.com/thing:4916779 (thanks!) with various changes

Model origin

The author remixed this model.

Differences of the remix compared to the original

  • Adapted vertical 5015 fan mount, with offset for Z brackets on the Ender 3
  • New Endstops that are easily adjustable compared to original
  • Adjusted Geometry of VZBot shroud (https://github.com/VzBoT3D) for better fitment and easier printing
  • Remixed Hextrudort (https://www.thingiverse.com/thing:4968405) to fit this toolhead and be more easily printable with heat set inserts
