Prusa (Tools) Rugged Boxes - CORE ONE - MK4S - MK4 - XL - MK3.9 - MK3.5 - MK3 - Mini+ - Mini (Parametric)

Now CORE ONE version available!

This is a remix of the Rugged Box from Whity with six different Prusa versions

Prusa Logo Version & Tools for:

Tools Version - all delivered tools and spare parts fit in it, including six Nextruder Nozzles (based on MK4 delivery)

• Prusa CORE ONE
• Prusa XL
• Prusa MK4S
• Prusa MK4
• Prusa MK3.9

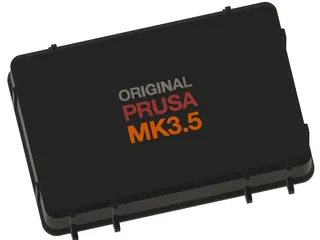

• Prusa MK3.5
• Prusa MK3S
• Prusa MINI+
• Prusa MINI

Prusa Logo only version for:

• Prusa MK4
• Prusa XL
• Prusa MINI
• Prusa MK3S

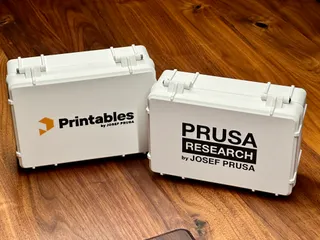

• Prusa Research
• Printables

You can mix the Boxes and the Lids of the different versions. Use a logo-only version and use the tools box version. Or use the tools lid version with the normal box.

You can print this with a single extruder with manual filament changes, or MMU (or Bambu AMS).
I included a Prusa Slicer Project file for the MK4 with InputShaper with manual filament change. You can easily adapt this to any other printer.

Colour change order for manual swaps of the Prusa_Prusa MK4 Tools Box Lid.3mf:

1. Background first (Black)
2. Prusa (White)
3. Original (grey)
4. MK4(S) (Orange).

Then it repeats for the second layer in the same order, but you don't need to do orange since it will do that first on the second layer.

5. Background (Black)
6. Prusa (White)
7. Original (Grey)
8. Rest of the lid (Black)

You can also check the colour order in the slicer preview.

My STLs/3MF box measures:

• Box size: 105x165mm
• Screws: 6x M3x30mm

Recommended print settings:

• 2 Perimeters/Walls
• 5 Bottom/Top layers
• 15% infill
• 0.2mm layer height (this crucial for the Tools version, otherwise the tolerances aren't correct)
• Wall generator: Arachne

Multi-Colour instructions with manual filament change:

• Use my .3mf file for the Prusa MK4 with InputShaper

OR

1. Set the printer up: (Source)
   1. In "Printer Settings"-->"General":
      • Set "Extruders" to the desired number of colours
      • Enable "Single Extruder Multi Material"
   2. In "Printer Settings"-->"Single extruder MM setup":
      • Set "Cooling tube position" to 10.
      • Set "Filament parking position" to 0.
      • Set "Extra loading distance" to 0.
      • These settings eliminate the filament getting retracted into the heatsink section and possibly jamming there and eliminating the big blob created in the wipe tower after changing filaments.  I think the original values are appropriate for a physical MMU(2) where the filament needs to be moved between the Bowden tube and the extruder tip but does the wrong thing for manual colour changes.
   3. In "Print Settings"-->"Wipe tower", disable "Prime all printing extruders".  Since we're manually changing filaments, there's no need to do this.
   4. In the "Printer Settings"-->"Custom G-code"-->"Tool change G-code" section, put the following: {if layer_num >= 0}M600 ; change to filament for extruder {next_extruder + 1}{endif}
2. Import the Lid.stl and split it into parts
3. Adjust the colours of the box and font
4. Send it to the printer and enjoy =)

Change Parameters/Measures of the box:

Download the Fusion 360 file and adjust the parameters (Modify → Change Parameters) to adjust the size of the Box for your needs. Before you import the project, you must download and install the font Helvetica Neue.

Please leave a like and show us your make! =)

• Added Prusa Logos
• Added Tools Holder
