Computer Mouse Bungee

UPDATE: 30/01/2021

• V2 - same design but have some details ( Wife request :P )

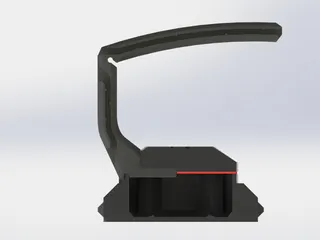

• Base V3 - work in progress but is a bit crazy, is compatible with any top part.

Another add-on for my desk, mouse cable is somethings that is always on the way, the solution is a Mouse Bungee.

This is by Mouse Bungee was "One day BUILD!"

The arm was printed in TPU but my TPU did not dried properly and the print quality was not the best.

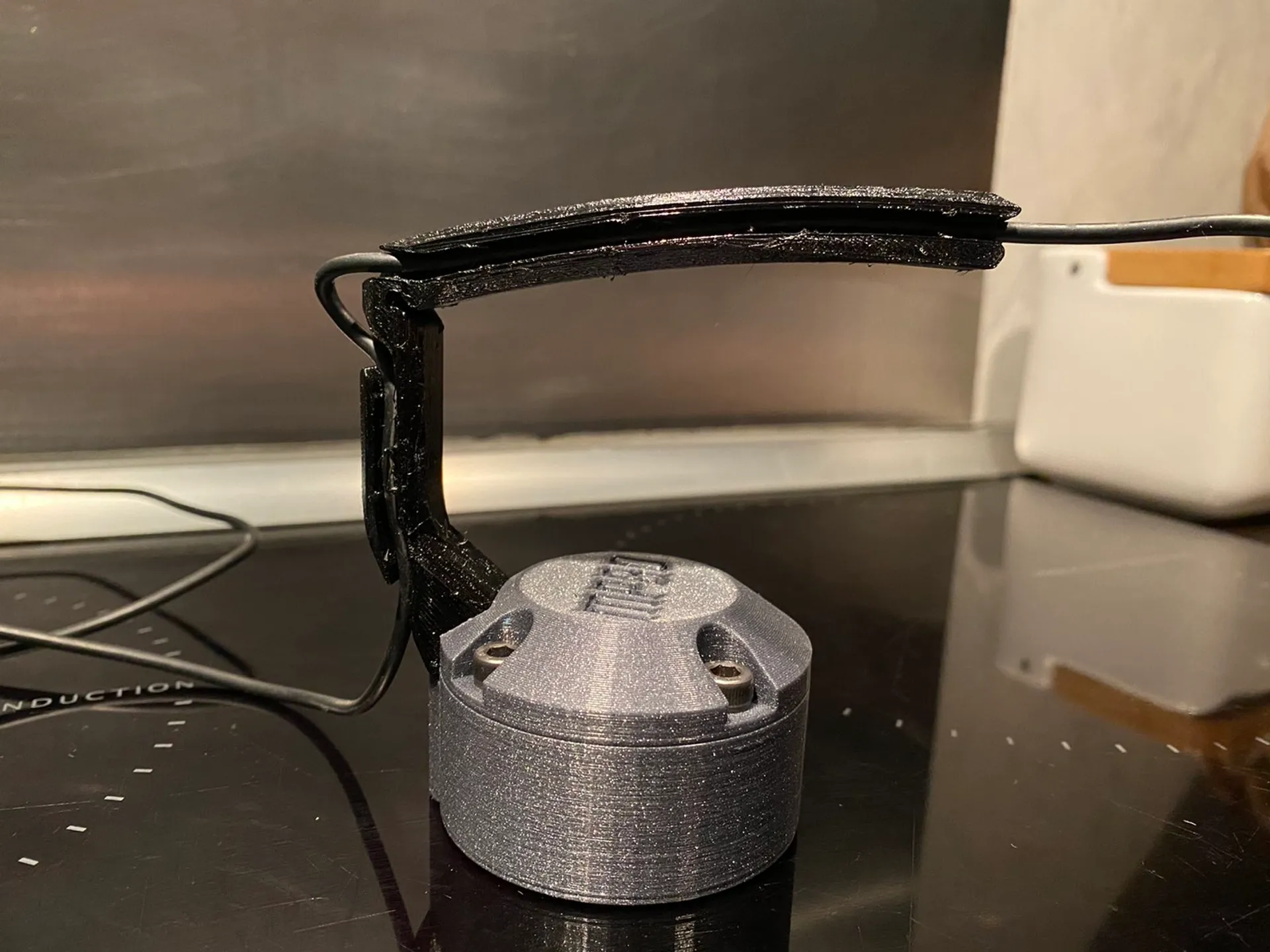

The bottom part is a container so you can put some weights, i will use sand but for now i filled with screws.

For me this is working very well.
I'm using with Logitech G502.

PS: Be careful when printing TPU on the "PEI" i did use the glue stick to avoid damage my PEI.

Here you have a video showing in action need more weight :P

Have fun.

Print instructions

Top and bottom:
Material: PLA
Layer: 0.2
Infill: 15% / Gyroid
Supports:
Top part: Need supports from build plate only.
Bottom part: Nop
The design was made to avoid supports on nuts M3 and M5 holes.

Arm:
Material: TPU
Layer:0.2
Infill: 15% / Gyroid
Supports: Nop

Sand Stopper:
Material: TPU
Layer:0.2
Infill: 100%
Supports: Nop

Material need:
4 x M5 screw
4 x M5 by 10mm Nuts
2 x M3 by 12mm Screw
2 x M3 Nuts
