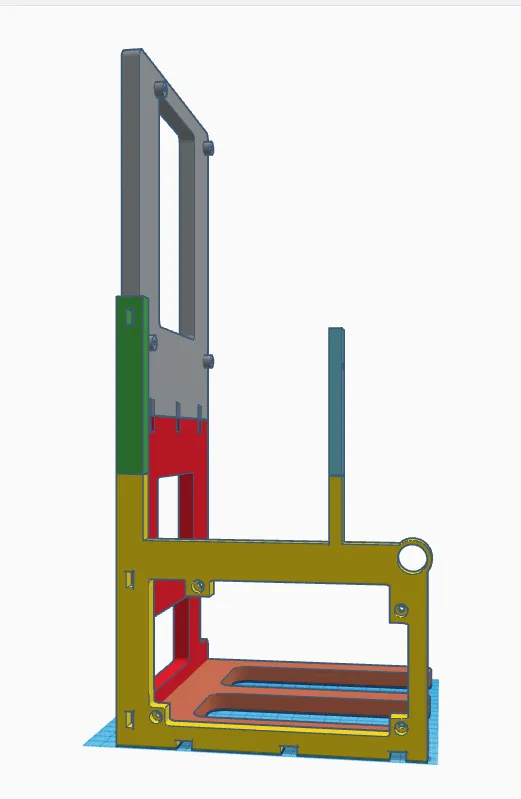

Open-Frame (m)ATX SFF PC CASE

This model is a remix of the mini ITX design by lightofhonor.

Challenged by my friends at VlogTehnica to modify and print this case for a mATX mainboard.

Somehow, the final design ended up being more suited for an ATX mobo.

In order to print it on my Ender 3 S1, I did have to extend the supports for the GPU. Since I was pretty new with working in Tinkercad, I ended up with very tight tolerances. To make the new GPU pegs fit, I had to sand them down a bit.

You will need 12 rectangular pegs to put it together and some good superglue.

lightofhonor recommends these settings:

3D PRINTING SETTINGS

• .32mm Layer Height
• 3 outer layers
• 3 top/bottom layers
• 20% infill (I used cubic infill)

I used 40% infill for the back and mobo pieces.

Used supports for the GPU pegs.

Video:

Changed tolerances on the GPU suppports
