Dog lock for PARKSIDE, MAKITA guide rails and 2020 extrusion

Inspired by David Stanton's dog locks and Peter Millard's videos I have made a dog/guide rail lock for Lidl's Parkside PTSS1200 plunge saw. Unfortunately the Lidl's guide rail design makes it hard to use any t-track accessory on the left side. You will need 10x10x10x1 mm aluminium U-shaped profile and cut one of it's side to 7mm.  Also some 10mm M3 screws with hex head, the screw will self cut the thread through the 3mm hole.

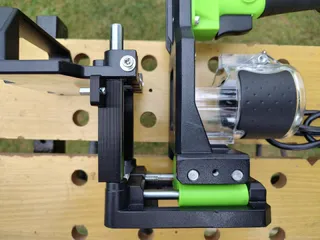

Since I have replaced the PTSS1200 with MAKITA SP6000J I made also a dog lock for MAKITA rail. It consists of two parts the lock/hook itself and the insert to the t-track. You will need 18-20mm M4 screw with hex head and winged/regular M4 nut.

Added dog lock for 2020 aluminium profile (V-slot). You will also need two 35mm M5 hex screw and M5 T nuts.
