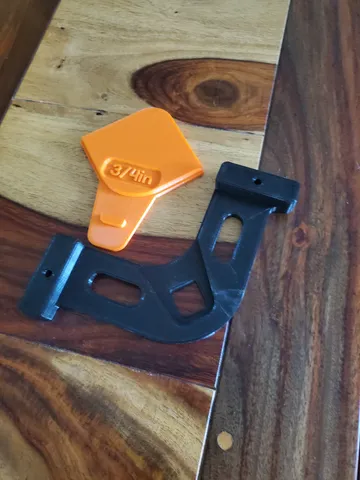

Like the design and appearance but as with some others the joint was too loose for me. I had 0.5-1 mm clearance but don’t think scaling would work to tighten it up. I’ve built an alternate design.
Router Corner Radius Guides
Interchangeable set of guides to aid when routing corners.
132
571
9
2841
updated April 13, 2023
Makes
Comments
Printed well and works great. Used it a bunch so far and has worked perfectly every time. Printed in Sunlu green PETG, no issues
Neat tool, but there’s quite a bit of play between the inserts and the handle. Printed on my MK4. (edited)
This is a perfect example that woodworking and 3D printing go hand in hand. Thanks for this design! (edited)
@JiltedGeek_120242 Definitely. And if you haven't seen their stuff, be sure to go check out https://www.ussadesign.com/. They've got some truly crazy designs for woodworking tools.
I see you've included the step file but I can't figure out how to edit it for additional radius guides in my CAD (Shapr3D). If anybody has the time to add a 5/16 inch and 5/8 inch guides I would appreciate it!
@andrhamm_10525 Hey, sorry. Missed this when it came through. Put those together real quick and uploading momentarily in case you still need them. I use Fusion, so don't know that I can help you figure out how to do it in Shapr. In Fusion, I duplicate the "starter" guide, modify the corner fillet, and modify the label area with the new text.
