Pixel Watch charger for Pixel Stand (any generation)

1st generation Pixel Stand clip-on extension for the Pixel Watch charger (for gen 1, 2 and 3).
10h 52m
7× print file
0.10 mm
0.20 mm
0.40 mm
35.00 g
95
542
5
4815
updated September 18, 2024

Description

PDF
DateDescription
18/09/2024Updated models for gen 2 & 3. Slightly enlarged the ring and the cable groove for an easier fit.
03/01/2024Fixed a mix-up in the files. I had not uploaded the right ones for the Pixel Watch 2.
02/01/2024

Modified the design for a slightly larger cable channel (3mm vs 2.8mm).

Added design for the Pixel Watch 2

Added options for the pad to be on the left side of the Pixel Stand.

16/06/2023Modified the arm for a better fit of the watch charger, and so it's easier to print.

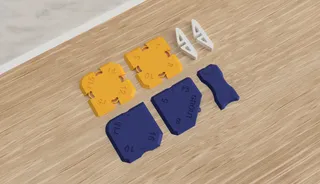

This is a 2 piece Pixel Watch charger stand that clips onto the 1st generation Pixel Stand.

I've also designed cable clips for cable management.

It looks best with a bit of clean up and sanding.

Assembly:

  1. Clip the charging pad into the arm's ring. Make sure the cable fits in the groove.
  2. Route the cable in the arm's groove, all the way.
  3. Assemble the arm and the base.
  4. Route the cable in the base's groove, applying some tension as you do so.
  5. Clip the base onto the back of the Pixel stand.
  6. Use the cable clips for cable management.
