Paramotor Throttle with cruise control. By Twisted Risers.

Twisted Risers throttle.

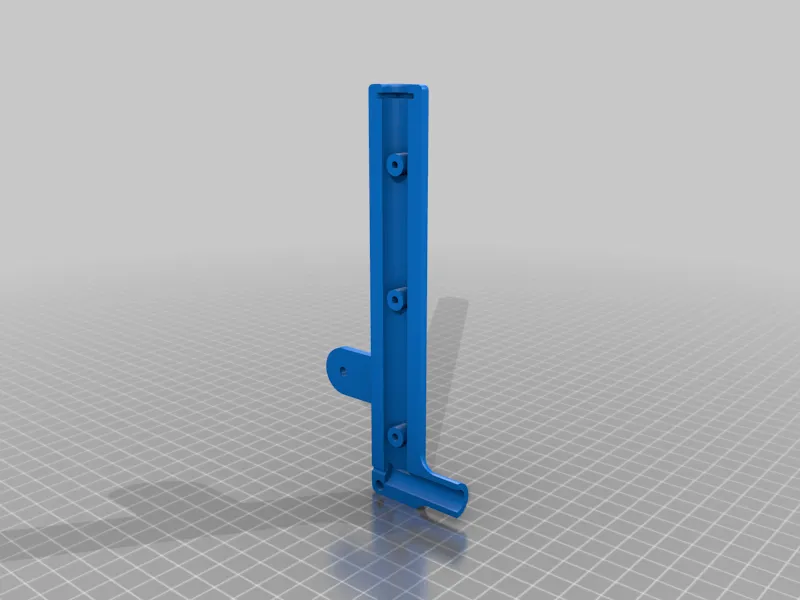

Two finger throttle for paramotor. You will require:

2 off 7mm OD 4mm ID bearings for the lever https://www.amazon.co.uk/sourcing-map-MR74-2RS-Groove-Bearings/dp/B082PS4RVW/ref=sr_1_2?keywords=7mm+od+4mm+id+bearing&qid=1581350946&s=diy&sr=1-2

1 off 12mm SPST button for engine kill switch https://www.amazon.co.uk/sourcingmap-Black-Momentary-Button-Switch/dp/B07FRYDCZ5/ref=sr_1_21?crid=OM750YN1ROZW&keywords=12mm+SPST+button&qid=1647092357&sprefix=12mm+spst+button%2Caps%2C70&sr=8-21

Screws / washers etc. If you fly paramotors you will figure it out.

Use your existing cables or buy new.

Para-Norman PPG did a great video on it here:

If you do not have a 3d printer can i suggest you contact Kyle Davies at the links below. He can print the parts for you with a percentage of the cost going to UK Alzheimers charity.

Website

Para-Normalppg.com

Facebook https://www.facebook.com/ParaNormalPPG

Ebay https://ebay.co.uk/usr/para-normalppg

Print Settings

Printer Brand:

TEVO

Printer:

Tornado

Rafts:

No

Supports:

Yes

Resolution:

.3

Infill:

35

Filament: 3DPrintz PETG Black
