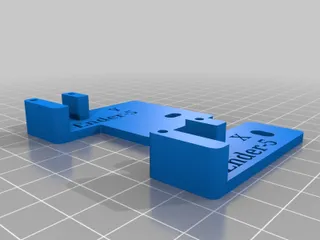

This is a fixed display variant of my slim display housing for an inboard install on an Ender 5.

Link 2 because the original appears to have a lot of access issues.

Original thing here: Ender 5 Core XY with Linear Rails by boothyboothy | Download free STL model | Printables.com

I have prototyped this with the BTT board and frame parts but not the stock display to date.

Printed with Amazon Basics Yellow PETG and AMZ3D Black PLA. No Need for PETG other than to match the rest of my Ender 5 parts.

Category: 3D Printer Parts
