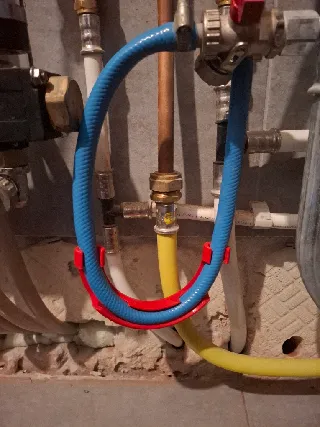

Easy to print hose/pipe bend support (parametric)
A parametric bending support for hoses/pipes with holes for mounting screws and easy to print
In the contest Plumbing Tools
419
678
2
3279
updated January 2, 2025
Makes
Comments
can you add for 12mm diameter hosepipe
@shoebwk_129687
Lucky you that I'm on maker holidays ;)
I can only make a guess to which radius the hose you have bends well. But, I made a version with a diameter of 12mm and a radius of 40mm.
Let me know if that works for you
Happy new year!
The print turned out perfect with no issues, using ELEGOO Rapid PETG.
I used the 17mm file at 180 degrees.
The only minor issue is that the radius is a bit tight. It would be great to have a few radius options for better flexibility.
#EDIT: With the help of the excellent Onshape file, I was able to adjust the dimensions to perfection.
Thanks! (edited)
View 2 more comments
(deleted)
(deleted)
needed somthing just like this to stop a fuel line from kinking on my truck.
